Abstract Factory Design Pattern

Definition

An interface for creating families of related or dependent objects without specifying their concrete classes. We can say it is just an object maker which can create more than one type of object.

The object it produces is known to the client only by that object's interface, not by the object's actual concrete implementation.

When to use it?

We use it when we have a requirement to create a set of related objects, or dependent objects which must be used together as families of objects. Concrete classes should be decoupled from clients.

How does it differ from Factory Method?

First of all, both of them fall under Creational category and it means both will solve the problem relating to object creation. Factory Method and Abstract Factory design pattern are about creating objects.

Factory Method Design Pattern

Here, we define an interface which will expose a method which will create objects for us. Return type of that method is never a concrete type; rather, it will be some interface (or may be an abstract class).

• Creates object through inheritance
• Produce only one product
• Implements code in the abstract creator that makes use of the concrete type that sub class produces

Abstract Factory Design Pattern

Here, we define an interface which will create families of related or dependent objects. In simple words, interface will expose multiple methods each of which will create some object. Again, here method return types will be generic interfaces. All these objects will together become part of some important functionality.

• Creates object through composition
• Produce families of products
• Concrete factories implements factory method to create product

UML

The classes and objects participating in the above UML class diagram are as follow.

• AbstractFactory

This is an interface for operations which is used to create abstract product.

• ConcreteFactory

This is a class which implements the AbstractFactory interface operations to create concrete products.

• AbstractProduct

This declares an interface for a type of product object

• Product

This defines a product object to be created by the corresponding concrete factory also implements the AbstractProduct interface

• Client

This is a class which uses AbstractFactory and AbstractProduct interfaces to create a family of related objects.

Real world example.

The example here has an implementation of an Abstract Factory as an Interface IMobilePhone that has methods that can create a Smart Phone object and a Normal Phone object. The client codes against IMobilePhone and gets ISmartPhone and INormalPhone interfaces.

In case of "Nokia", it creates a family of Nokia objects (SmartPhone and NormalPhone) and in case of "Samsung", creates a family of Samsung objects (SmartPhone and NormalPhone).

The client doesn't care which object (Nokia SmartPhone and NormalPhone or Samsung SmartPhone and NormalPhone), IMobilePhone interface returns as it codes against ISmartPhone and INormalPhone interface.

Who is what?

The classes and objects participating in the above class diagram can be identified as shown below.

• AbstractFactory- IMobilePhone
• ConcreteFactory - Nokia, Samsung
• AbstractProduct- ISmartPhone, INormalPhone
• Product- NokiaPixel, Nokia1600, SamsungGalaxy, SamsungGuru
• Client- MobileClient

Here are the code blocks for each participant

AbstractFactory

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'AbstractFactory' interface.
    /// </summary>
    interface IMobilePhone
    {
        ISmartPhone GetSmartPhone();
        INormalPhone GetNormalPhone();
    }
}

ConcreteFactory

Nokia

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'ConcreteFactory1' class.
    /// </summary>
    class Nokia : IMobilePhone
    {
        public ISmartPhone GetSmartPhone()
        {
            return new NokiaPixel();
        }

        public INormalPhone GetNormalPhone()
        {
            return new Nokia1600();
        }
    }
}

Samsung

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'ConcreteFactory2' class.
    /// </summary>
    class Samsung : IMobilePhone
    {
        public ISmartPhone GetSmartPhone()
        {
            return new SamsungGalaxy();
        }

        public INormalPhone GetNormalPhone()
        {
            return new SamsungGuru();
        }
    }
}

AbstractProduct

ISmartPhone

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'AbstractProductA' interface
    /// </summary>
    interface ISmartPhone
    {
        string GetModelDetails();
    }
}

INormalPhone

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'AbstractProductB' interface
    /// </summary>
    interface INormalPhone
    {
        string GetModelDetails();
    }
}

Product

NokiaPixel

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'ProductA1' class
    /// </summary>
    class NokiaPixel : ISmartPhone
    {
        public string GetModelDetails()
        {
            return "Model: Nokia Pixel\nRAM: 3GB\nCamera: 8MP\n";
        }
    }
}

SamsungGalaxy

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'ProductA2' class
    /// </summary>
    class SamsungGalaxy : ISmartPhone
    {
        public string GetModelDetails()
        {
            return "Model: Samsung Galaxy\nRAM: 2GB\nCamera: 13MP\n";
        }
    }
}

Nokia1600

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'ProductB1' class
    /// </summary>
    class Nokia1600 : INormalPhone
    {
        public string GetModelDetails()
        {
            return "Model: Nokia 1600\nRAM: NA\nCamera: NA\n";
        }
    }
}

SamsungGuru

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'ProductB2' class
    /// </summary>
    class SamsungGuru : INormalPhone
    {
        public string GetModelDetails()
        {
            return "Model: Samsung Guru\nRAM: NA\nCamera: NA\n";
        }
    }
}

Client

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// The 'Client' class
    /// </summary>
    class MobileClient
    {
        ISmartPhone smartPhone;
        INormalPhone normalPhone;

        public Client(IMobilePhone factory)
        {
            smartPhone = factory.GetSmartPhone();
            normalPhone = factory.GetNormalPhone();
        }

        public string GetSmartPhoneModelDetails()
        {
            return smartPhone.GetModelDetails();
        }

        public string GetNormalPhoneModelDetails()
        {
            return normalPhone.GetModelDetails();
        }
    }
}

Factory Pattern Client Demo

using System;

namespace AbstractFactoryDesignPatternInCSharp
{
    /// <summary>
    /// Abstract Factory Pattern Demo
    /// </summary>
    class Program
    {
        static void Main()
        {
            IMobilePhone nokiaMobilePhone = new Nokia();
            MobileClient nokiaClient = new MobileClient(nokiaMobilePhone);

            Console.WriteLine("********* NOKIA **********");
            Console.WriteLine(nokiaClient.GetSmartPhoneModelDetails());
            Console.WriteLine(nokiaClient.GetNormalPhoneModelDetails());

            IMobilePhone samsungMobilePhone = new Samsung();
            MobileClient samsungClient = new MobileClient(samsungMobilePhone);

            Console.WriteLine("******* SAMSUNG **********");
            Console.WriteLine(samsungClient.GetSmartPhoneModelDetails());
            Console.WriteLine(samsungClient.GetNormalPhoneModelDetails());

            Console.ReadKey();
        }
    }
}

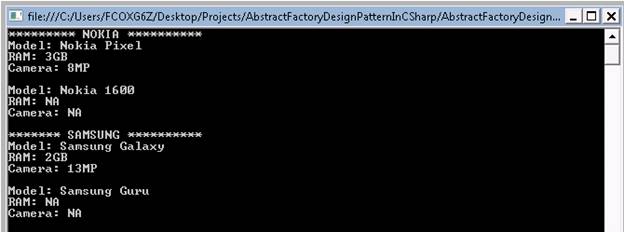

Output

---
